Roof flashing types
Three of the five leak sources are flashing.
2026-09-04 · 8 min read

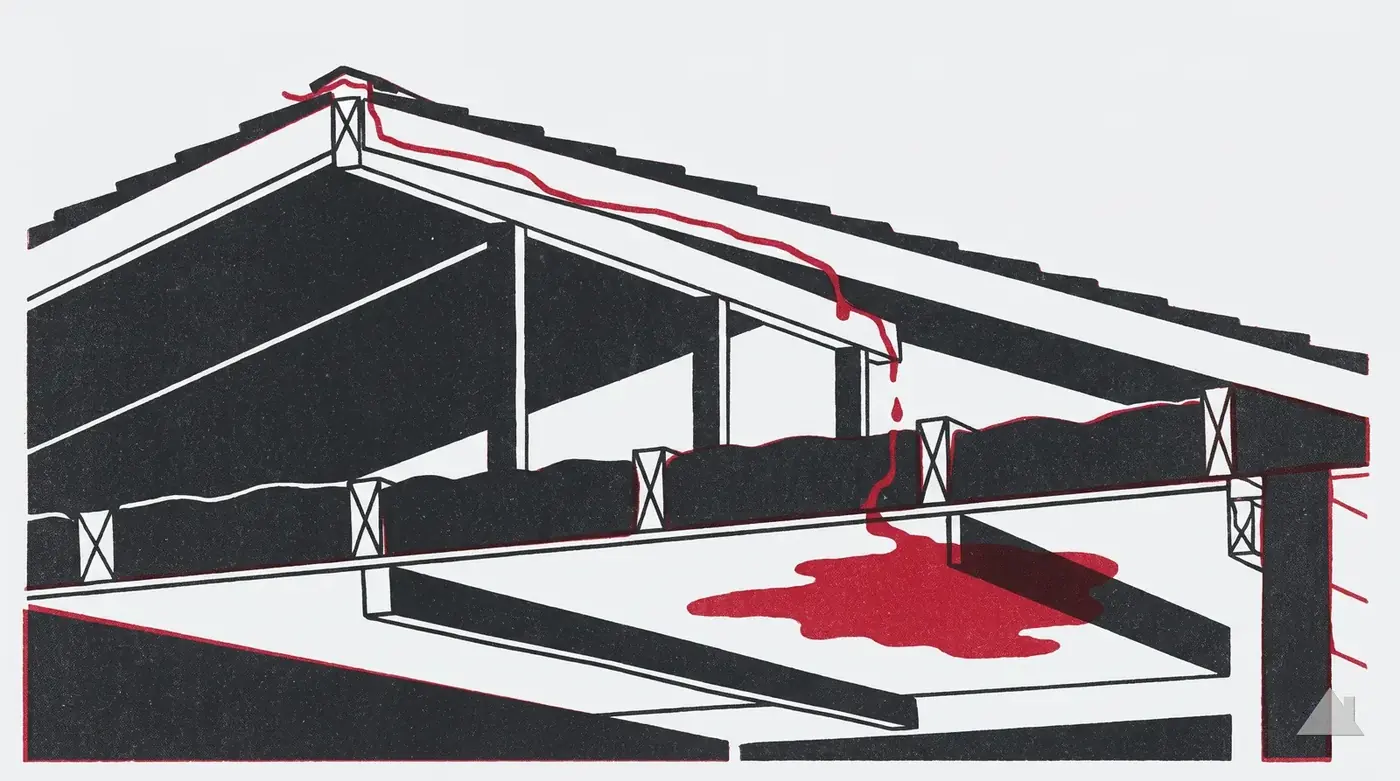

One red line from the failed penetration to the stain.
The stain on the ceiling is almost never under the hole. Water enters at a penetration or a lap, runs down the underside of the deck until it meets a rafter, tracks along that rafter until something interrupts it, and drops. Ten feet of horizontal travel is ordinary. That is why a repair quote that names an entry point is worth more than one that names a price.
Trace it from inside with a torch on a wet day: follow the wet line uphill to the highest point of staining on the sheathing, then measure that point from the ridge and from the nearest gable so you can find it from above. A paid diagnostic inspection runs $307 to $571 and is usually credited against the work.
| Source | Repair cost | Tell |
|---|---|---|
| Cracked pipe boot | $150 – $450 | Stain directly below a vent stack |
| Failed step or wall flashing | $300 – $1,000 | Stain at an interior wall line |
| Valley failure | $600 – $2,000 | Stain where two roof planes meet above |
| Chimney flashing | $500 – $2,500 | Stain around the chase, worse in driving rain |
| Nail pops / worn field | $350 – $1,200 | Several small stains, no pattern |
Add deck repair at $2–$8 a square foot wherever the sheathing has been wet long enough to soften — which, on a leak that has run for a season, is usual rather than exceptional.

Tear-off / structural
A deck that gives underfoot, a rafter with visible rot, or a ceiling holding water are not repair-quote situations. Get the roof covered temporarily and get someone competent under it before anyone walks above it.

An emergency tarp runs $300 to $1,000 and buys weeks, not months. It is worth it when the alternative is water in the house, and it is worth nothing at all if it is fastened through sound shingles — every fastener is a new hole. After a storm, tarp and photograph before you clean anything up: the photographs are the claim. The claim guide covers what happens next, and the repair cost guide has the repair-or-replace arithmetic.
Three of the five leak sources are flashing.
Find the entry point before you price the fix.
What a long-running leak costs underneath.
